2003-2007 6.0 Powerstroke EGR, Exhaust & Up-Pipe Solutions
October 6, 2026

2003-2007 6.0 Powerstroke EGR, Exhaust & Up-Pipe Solutions

Many 2003-2007 6.0L Powerstroke owners end up researching EGR and exhaust work the same way — a coolant level that keeps dropping with no puddle under the truck, an exhaust leak that hisses or screeches under load, or a truck that simply doesn’t pull like it used to. This guide walks through the three most common problem areas on the 6.0L: the EGR cooler, the exhaust mid-section, and the turbo up-pipes. For each one it covers what fails, why it matters, and the replacement part that addresses it.

The 6.0L has a reputation, and a good portion of it is earned. But most of the engine’s well-known issues trace back to a small number of heat-cycled components rather than the engine block itself. Get those three areas straight and you are most of the way to a truck that runs cooler and breathes better.

Why Do 6.0L Powerstroke Owners Address EGR, Exhaust and Up-Pipe Issues Together?

These three systems — the EGR cooler, exhaust mid-section, and up-pipes — work in the same area of the engine and are exposed to the same heat cycles and operating conditions. Located around the engine valley and firewall area, these components experience constant exhaust heat, making them common areas of concern as the truck accumulates mileage.

The reason owners often address them together is simple: they are closely connected and require similar access during repairs. The up-pipes carry exhaust from the manifolds to the turbo, the EGR cooler sits beneath the intake, and the cat and muffler section controls exhaust flow after the turbo. Handling these areas together can reduce repeated teardown work and help identify related problems before replacing parts unnecessarily.

The symptoms can also overlap. A weak turbo response, higher exhaust temperatures, or unexplained coolant loss may come from different components in this system. Looking at the complete picture helps owners choose the right repair instead of chasing one symptom at a time.

Seguler 3.5" Cat & Muffler Delete Pipe 2003-2007 6.0L Ford Powerstroke

What Are the Common 6.0L Powerstroke Problems?

Most 6.0L problems announce themselves gradually, and owners usually catch them by noticing one or two specific things.

Coolant loss with no visible leak. A reservoir that drops a little each week with nothing on the ground is the classic sign of an internal EGR cooler leak. The coolant is leaving through the intake or exhaust path rather than pooling underneath the truck.

White smoke or a sweet smell from the exhaust. When coolant finds its way into the combustion path, it shows up as white vapor, often with an antifreeze-like odor, and it is usually easiest to see on cold starts.

A screech, whistle, or hiss behind the firewall under boost. This is exhaust gas escaping from a cracked up-pipe bellows before it ever reaches the turbo. It often sounds like a metallic whistle that changes pitch with throttle.

Loss of boost and a soft throttle. A leaking up-pipe means exhaust drive pressure is bleeding off before it can spin the turbo, which shows up as slow spool and a truck that feels flat under load.

Higher exhaust gas temperatures while towing. Both a restricted exhaust and a leaking up-pipe can hold more heat in the system, which is most obvious on a long grade with a trailer behind the truck.

None of these is a smoking gun on its own. Two or three showing up together usually points at the exhaust and EGR hardware rather than any single sensor — and that is when it pays to map out the whole system instead of chasing one symptom.

How Does the 6.0L EGR Cooler Fail — and How Do You Address It?

The EGR cooler is one of the most talked-about weak points on the 6.0L, and it sits at the center of most 6.0 Powerstroke EGR problems. Understanding what it does makes the failure easy to picture.

What the EGR Cooler Does

The EGR system takes a portion of exhaust gas and feeds it back into the intake to lower combustion temperatures and cut NOx. Before that gas reaches the intake, it passes through the EGR cooler — a heat exchanger that runs engine coolant around the exhaust passages to pull heat out of the gas. On the 6.0L the cooler is a round, canister-style unit buried in the engine valley, sitting directly under the intake manifold and next to the oil cooler.

The design does its emissions job, but it puts a heat exchanger in one of the hottest, most stressful spots on the engine. The cooler sees exhaust heat on the inside and coolant pressure on the outside, and the metal between them expands and contracts on every single drive.

Why the Cooler Fails

That thermal cycling is what eventually cracks a cooler core. Over tens of thousands of miles — and especially on trucks that tow or see heavy load — the internal passages can develop hairline cracks that let coolant cross into the exhaust side and get pulled into the intake.

The tell is usually the one owners describe first: coolant consumption with no visible leak. Because the coolant is leaving through the intake, there is no puddle under the truck. White smoke and a sweet smell are the same leak showing up at the tailpipe. Left alone, coolant entering the cylinders is a far more serious problem than a dirty intake, which is why many owners treat a failing cooler as a “deal with it now” item rather than a “wait and see” one.

Seguler 2003-2007 6.0L FORD Powerstroke Diesel EGR Cooler Delete Kit

The 6.0L Powerstroke EGR Cooler Kit provides a solution for one of the most common failure points on the 2003-2007 6.0L Powerstroke — the factory EGR cooler. Over time, repeated heat cycling can cause the cooler core to crack, allowing coolant to enter the intake system and leading to symptoms such as unexplained coolant loss, white smoke, and increased intake-side buildup.

This kit is designed to remove the failure-prone factory cooler assembly and reroute the coolant flow path, helping eliminate the source of internal coolant leaks while keeping the cooling system properly circulating. For 6.0L owners addressing EGR cooler issues, it offers a direct way to repair a known weak point and restore long-term reliability.

Seguler 2003-2007 6.0L FORD Powerstroke Diesel EGR Cooler Delete Kit

Key features:

  • Premium billet aluminum and 304 stainless steel construction with CNC machining for superior strength, corrosion resistance, and long-lasting durability
  • Reroutes coolant away from the factory EGR cooler assembly to help prevent common cooler cracking and internal coolant leaks
  • Stops hot exhaust gas, soot, and diesel ash recirculation through the intake system for cleaner airflow and reduced buildup
  • Removes the heat-soaking factory EGR cooler from the engine valley to help reduce coolant and engine oil temperatures

For 2003-2007 6.0L Powerstroke owners, the factory EGR cooler is a common weak point as mileage increases. Addressing signs like coolant loss, white smoke, or intake buildup early can help prevent bigger issues. The EGR Cooler Kit provides a durable solution with improved coolant routing and reliable construction to help protect your diesel for the long term. Always confirm fitment and local regulations before installation.

How Does Exhaust Restriction Hurt the 6.0 Powerstroke Turbo Spool?

The exhaust side of the 6.0L is simpler than the later trucks, but it still has its restrictions.

What the Factory Exhaust Looks Like

The 6.0L is worth a note here, because it sits in a different spot than the engines that came after it. Unlike the 6.4L and 6.7L that followed, the 2003-2007 6.0L does not run a diesel particulate filter. Its exhaust treatment is a catalytic converter followed by a chambered muffler, and after those two pieces the spent gas exits through the tailpipe.

That means the exhaust restriction on a 6.0L comes from the cat and the muffler rather than a DPF. It is a smaller restriction than a full DPF-and-SCR stack, but it is still a restriction, and both the cat and the muffler sit in the path where the engine is trying to push spent gas out.

What the Cat and Muffler Cost

Two things happen when the exhaust has to work past the cat and the muffler. First, backpressure builds behind the turbo, which slows spool and dulls throttle response — the truck feels a little lazier than it should, especially under load. Second, the cat and muffler hold heat, which keeps exhaust gas temperatures higher than they need to be on a long pull.

On a 6.0L that tows, those two effects compound. A truck that already runs warm on a grade has to work a little harder just to push exhaust through the factory mid-section, and the heat soaks back into the surrounding engine bay.

What a Cat-and-Muffler Pipe Changes

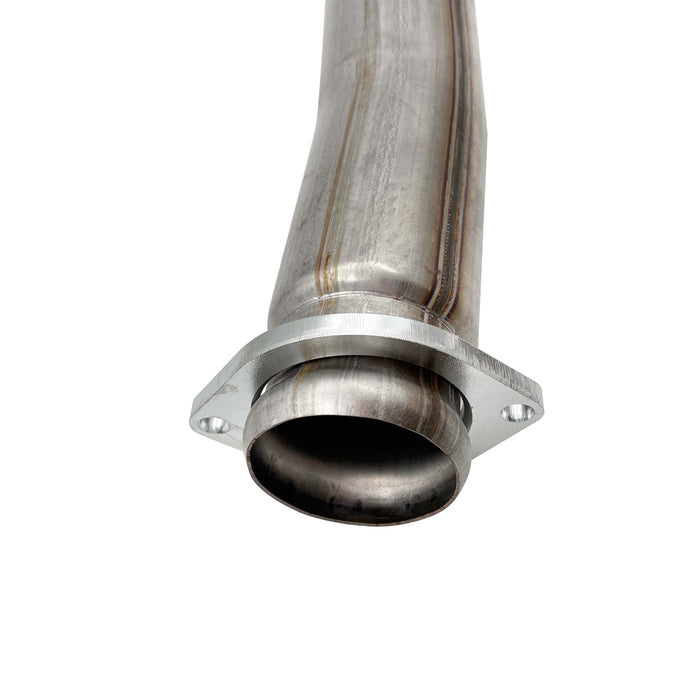

Seguler 3.5" Cat & Muffler Delete Pipe 2003-2007 6.0L Ford Powerstroke

The 3.5" Cat & Muffler Pipe helps improve the exhaust flow of the 2003-2007 6.0L Powerstroke by replacing the restrictive factory catalytic converter and muffler section. Over time, these factory components can create additional backpressure and limit how freely exhaust leaves the engine, especially when towing or working the truck hard.

By using a straight-through 3.5-inch design, this pipe helps reduce exhaust restriction behind the turbo, allowing exhaust gases to move out more efficiently. The result is improved turbo response, better throttle feel, and a more responsive driving experience for 6.0L Powerstroke owners looking to upgrade their exhaust system.

Seguler 3.5" Cat & Muffler Delete Pipe 2003-2007 6.0L Ford Powerstroke

Key features:

  • Premium Mandrel-Bent T409 Stainless Steel construction with heavy-duty 3.5" tubing for high heat resistance and long-lasting durability
  • Reduces exhaust restriction and helps lower EGTs by allowing hot exhaust gases to exit more freely
  • Replaces both the restrictive factory catalytic converter and chambered muffler with a smooth 3.5-inch straight-through pipe
  • Eliminates exhaust restrictions to enhance turbo response and deliver the signature 6.0L Powerstroke turbo whistle and aggressive exhaust sound

Designed for 2003-2007 F-250 and F-350 Super Duty pickups, the 3.5" Cat & Muffler Pipe provides a simple way to improve exhaust flow and reduce factory restrictions on the 6.0L Powerstroke. With a durable stainless steel design and direct-fit installation, it is built for owners who tow, haul, or want a more responsive exhaust system. Always confirm your cab, bed configuration, and local regulations before ordering.

    What Are the Signs of a 6.0 Powerstroke Up-Pipe Leak?

    The up-pipes are the piece that catches a lot of 6.0L owners by surprise, because they are not talked about nearly as much as the EGR cooler — but they fail just as predictably.

    What the Up-Pipes Do

    The up-pipes (often called the Y-pipe on the 6.0L) connect the exhaust manifolds to the turbocharger. Exhaust gas leaves the cylinders, collects in the manifolds, and travels up through these pipes into the turbo, where that flow of hot gas is what spins the turbine. Every bit of exhaust drive pressure the turbo uses has to pass through the up-pipes first.

    To absorb the movement and expansion that comes with constant heat cycling, the factory up-pipes use a flexible bellows section. That bellows is the weak point — it is a thin, flexible joint asked to handle brutal heat and repeated expansion and contraction, and over time it fatigues.

    What Happens When They Crack

    A hairline crack in a factory bellows is a small failure with an outsized effect. Exhaust gas escapes through the crack before it ever reaches the turbo, which means drive pressure is bleeding off into the engine bay instead of spinning the turbine. The truck loses boost, the throttle goes soft, and exhaust temperatures climb while towing because the turbo is being fed less energy than it should be.

    Owners usually hear it before they feel it. A cracked up-pipe makes a metallic whistle or screech that rises and falls with throttle, and it often leaves a telltale soot stain on the firewall behind the turbo. The sound is easy to mistake for a turbo problem, which is why it is worth checking the bellows before chasing anything else.

    What an Upgraded Up-Pipe Changes

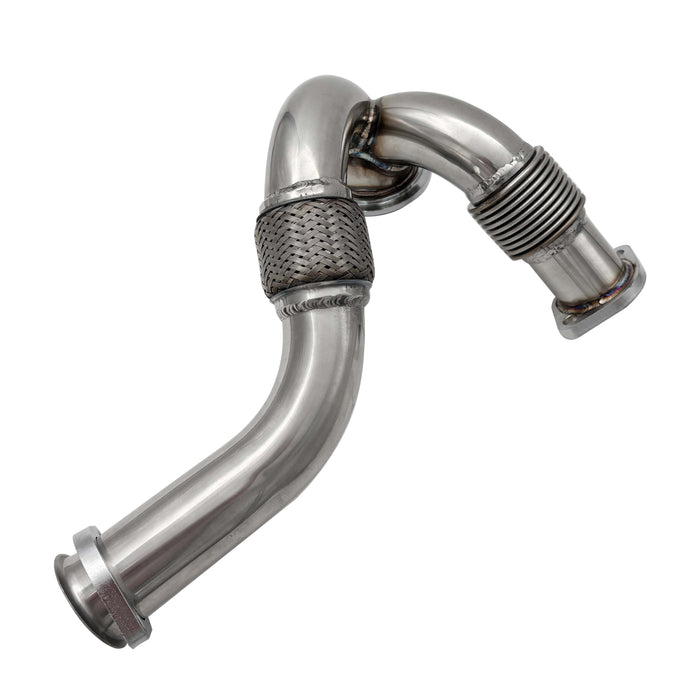

    Seguler 2003-2007 6.0L Ford Powerstroke Heavy Duty Polished Exhaust Up-Pipe Y-Pipe

    The Exhaust Up-Pipe Y-Pipe is designed to solve a common issue on the 2003-2007 6.0L Powerstroke — cracked factory up-pipe bellows. After years of heat cycling, the factory flex sections can develop cracks, allowing exhaust gases to leak before reaching the turbo and causing symptoms like a whistle under boost, slower spool-up, and reduced power under load.

    Built as a heavy-duty replacement for the factory up-pipe, this Y-pipe helps seal exhaust leaks and restore the exhaust pressure needed for proper turbo operation. For 6.0L Powerstroke owners who tow or rely on their trucks for heavy-duty work, it provides a durable solution to improve exhaust reliability and maintain consistent turbo response.

    Seguler 2003-2007 6.0L Ford Powerstroke Heavy Duty Polished Exhaust Up-Pipe Y-Pipe

    Key features:

    • Heavy-duty polished stainless steel construction with CNC-machined flanges for excellent heat resistance, corrosion protection, and long-lasting durability
    • Helps reduce towing EGTs by preventing exhaust leaks and maintaining proper exhaust flow under heavy loads
    • Restores turbo drive pressure with smooth mandrel-bent tubing for improved throttle response and consistent boost
    • Reinforced stainless flex bellows help prevent common 6.0L factory Y-pipe cracks, exhaust leaks, and soot buildup

    Designed for 2003-2007 F-250 through F-550 and diesel Excursion models, the Up-Pipe Y-Pipe is a direct replacement for the factory unit and works with stock or tuned trucks. For owners dealing with exhaust leaks, whistle under boost, or soot around the firewall, it helps seal the leak points and restore lost turbo drive pressure.

    Installation is straightforward, with the main challenge being access around the firewall area. Proper alignment before tightening ensures a secure fit and reliable performance.

    How Do These Three Upgrades Work Together?

    The three pieces cover the full exhaust-and-airflow path of the engine, and they line up end to end.

    The up-pipes handle the hot side before the turbo — sealing the leak points so exhaust drive pressure reaches the turbine instead of bleeding off. The cat-and-muffler pipe handles the cold side after the turbo — removing the restriction and heat sink in the mid-section. The EGR cooler removal handles the intake side — closing the recirculation loop that feeds exhaust gas and coolant risk back into the intake.

    Before:

    Exhaust manifold → (cracked up-pipe leaks) → Turbo → Cat → Muffler → Tailpipe

    Exhaust → EGR Cooler (coolant leak risk) → EGR Valve → Intake

    After:

    Exhaust manifold → sealed up-pipes → Turbo → straight 3.5" pipe → Tailpipe

    Intake path no longer fed by the EGR recirculation loop

    The practical benefit of doing them together is the shared teardown. The up-pipes, the EGR cooler, and the exhaust mid-section all live in roughly the same part of the engine bay, so a lot of the surrounding hardware — the intake plumbing, the turbo connections, the heat shields — comes off once and goes back on once.

    What Are Common Misconceptions About 6.0L Powerstroke Upgrades?

    There is a lot of information shared in the 6.0L owner community, but some common assumptions can lead to the wrong repair approach. Before investing in upgrades, it is important to understand what each component actually addresses.

    “The EGR cooler removal alone fixes coolant loss.”
    An EGR cooler upgrade addresses one of the most common sources of internal coolant leaks, but it does not fix issues caused by other components. Cracked up-pipes, exhaust leaks, or other cooling system problems will still need to be diagnosed separately.

    “The 6.0L needs a DPF removal.”
    The 2003-2007 6.0L Powerstroke was not equipped with a DPF from the factory. Exhaust upgrades on this platform focus on improving the factory exhaust path, including components like the catalytic converter, muffler, and up-pipes.

    “Every upgrade requires custom tuning.”
    Not every modification needs tuning. Exhaust components such as the up-pipes and cat/muffler pipe are mechanical replacements that can work on stock or tuned trucks. EGR-related changes should be planned based on your specific setup and application.

    “These modifications are legal everywhere.”
    Regulations vary depending on location and vehicle use. Always check local requirements before installing any emissions-related components.

    What Should You Check Before Ordering?

    A few things are worth confirming before you order or start tearing things apart, because the 6.0L has its own fitment quirks.

    Check Why It Matters
    Engine confirmation Fits 6.0L only — not for 7.3L/6.4L/6.7L
    Cab and bed configuration Pickup-specific; some 2004 cab/bed combos excluded
    Existing modifications Avoids conflicts with prior exhaust, intake, or EGR work
    Local regulations Required before any emissions-related modification
    Install access EGR requires intake & turbo removal

    The cab and bed detail is the one most people overlook. The cat-and-muffler pipe is built for the F-250/F-350 pickups in SuperCab and Crew Cab form, with minor trimming on short-wheelbase trucks. The EGR kit and up-pipes are broader — covering the F-250 through F-550, the Excursion, and in the EGR kit’s case the E-Series vans — but none of them is universal. Match your exact configuration on the product page before ordering.

    How Hard Is the Install, Really?

    A full 6.0L set is not a beginner job, but it is not out of reach for a mechanically inclined owner with a good tool kit and a safe way to get the truck up in the air.

    The up-pipe and exhaust side is the friendlier half. Both are bolt-on; the challenge is access, because the 6.0L firewall is tight and the upper up-pipe bolts and turbo connections take patience and sometimes a second set of hands.

    The EGR side is more involved. The cooler sits under the intake manifold, so the alternator, air intake, turbo, and intake manifold all come out before the block-off hardware goes in, and the coolant reroute needs to be routed and sealed correctly. That is the step where most owners lean toward a shop.

    Realistically, plan a full weekend for a first-timer doing all three at home, with the EGR cooler and coolant reroute eating the biggest single chunk of that time. A shop that has done 6.0L work before moves faster, which is part of why doing the three as a set makes sense.

    Is This the Right Set of Upgrades for Your Truck?

    If you are trying to match a symptom to the right part, this table lines them up:

    Problem Possible Cause Solution
    Coolant loss EGR cooler failure EGR Cooler Delete Kit (SG-ER-0067)
    Whistle under boost Up-pipe leak Up-Pipe Y-Pipe (SG-DP-0036)
    Slow spool Exhaust restriction Cat & Muffler Delete Pipe (SG-DP-0324)

    These three upgrades fit a specific kind of owner. They make the most sense if the truck is showing EGR, exhaust, or up-pipe symptoms and you would rather knock them out together, if you do your own work and want to avoid paying for the same teardown more than once, or if you plan to use the truck in a way where these changes apply.

    They are less of a fit if the truck needs to stay emissions-compliant for on-road use, or if you only need one small component and do not want to open up the rest of the system.

    The deciding factor for most people is whether the truck is actually showing signs in more than one of these areas. If the coolant is dropping and there is a whistle behind the firewall, doing the EGR cooler and the up-pipes together is usually the more sensible route than opening the valley twice.

    The Bottom Line

    The 6.0L Powerstroke is a capable diesel platform, but several heat-cycled components can become common trouble spots as mileage increases. The EGR cooler, exhaust mid-section, and turbo up-pipes are closely connected and can affect coolant reliability, exhaust flow, and turbo performance when problems develop.

    Whether you are dealing with unexplained coolant loss, a whistle under boost, or slower turbo response, identifying the right component can help avoid unnecessary repairs. Addressing these areas together can also reduce repeated teardown work and make the repair process more efficient.

    For 2003-2007 6.0L Powerstroke owners looking to address these common issues, explore the solutions below:

    Always confirm your engine model, cab and bed configuration, and local requirements before ordering. Explore more 6.0L Powerstroke upgrades and diesel solutions at Seguler.com.

    Frequently Asked Questions

    What years does this cover?

    The three parts cover the 2003-2007 6.0L Powerstroke. The EGR cooler kit also fits the diesel Excursion and the 2005-2010 E-Series vans, while the exhaust pipe is pickup-specific.

    What are the most common 6.0 Powerstroke failures?

    The most talked-about issues on the 2003-2007 6.0L are the EGR cooler leaking coolant into the intake, the up-pipe flex bellows cracking, and head gasket problems — several of which are linked to heat and the EGR system. Exhaust restriction from the cat and muffler is a lesser but still common complaint on trucks that tow.

    Does the 6.0L Powerstroke have a DPF?

    No. The 2003-2007 6.0L runs a catalytic converter and a muffler, not a diesel particulate filter. The DPF arrived with the later 6.4L, which is why exhaust work on a 6.0L is a different job than on the newer trucks.

    Do I need custom tuning for these parts?

    Not for the exhaust mid-section or the up-pipes — they are direct mechanical replacements that run on stock or tuned trucks, and the cat-and-muffler pipe generally does not trip a check engine light because the 6.0L lacks post-cat monitoring. The EGR side changes what the engine expects to see, so plan for that calibration alongside it.

    Why is the exhaust pipe 3.5 inches instead of 4 inches?

    The factory 6.0L uses 3.5-inch piping from the downpipe. The pipe matches that diameter, so it bolts straight into the original system without adapters or a tailpipe swap.

    Will the EGR cooler kit fit my 7.3L or 6.4L?

    No. The EGR kit is 6.0L-specific and does not cross over to the 7.3L, 6.4L, or 6.7L engines.

    What are the symptoms of a cracked up-pipe?

    A metallic whistle or screech behind the turbo that changes with throttle, a soot stain on the firewall, loss of boost, and higher exhaust temperatures while towing.

    Can a 6.0 Powerstroke exhaust upgrade improve turbo response?

    In most cases, yes. Both the exhaust mid-section and the up-pipes affect how quickly the turbo builds boost. A freer-flowing exhaust reduces backpressure behind the turbo, and sealed up-pipes make sure exhaust drive pressure reaches the turbine instead of leaking out. Together they can help the turbo spool sooner and feel more responsive under load.

    How hard is the install?

    The up-pipes and exhaust are bolt-on with the main challenge being access. The EGR side is more involved, since the cooler sits under the intake manifold and the alternator, air intake, and turbo all come out to reach it. Plan a full weekend for a first-timer doing all three at home.

    Will these changes make the truck louder?

    The exhaust note changes most on the cat-and-muffler pipe — removing the muffler makes the truck louder under throttle, and the 6.0L’s turbo whistle is more prominent. The up-pipes and EGR kit are quieter changes, mostly affecting how the truck runs rather than how it sounds.

    Legal Disclaimer

    For off-road / competition use only. Not legal for on-road use in emissions-regulated areas. Check your local, state, and federal laws before modifying any emissions-related component.
